这个效果是某项目做人口迁徙的一个方案，用动态弧线展示人口迁入、迁出的效果。鼠标移动到弧线上会显示出详情。结合deck.gl和arcgis。 核心思路和结合threejs一样，还是扩展
externalRenderers结合一些自定义shader来实现，做了省市二级联动。贴图就只贴地图上的效果了

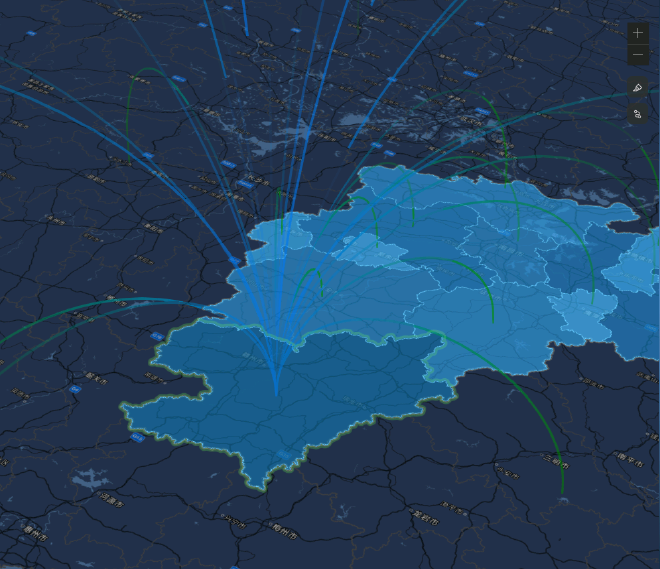

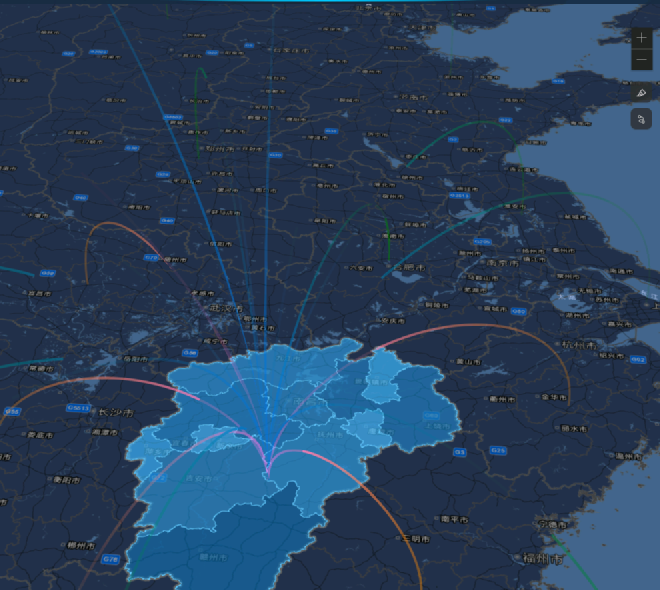

效果 #
代码 #
DeckInstance.ts
i// eslint-disable-next-line @typescript-eslint/ban-ts-comment
// @ts-nocheck
import TileLayerDeckRenderer from './TileLayerDeckRenderer';
import * as externalRenderers from "@arcgis/core/views/3d/externalRenderers";
let renderer: any = null
export const getDeckInstance = (sceneView:__esri.SceneView) => {
if (!renderer) {
renderer = new TileLayerDeckRenderer(sceneView, {
layers: []
});
externalRenderers.add(sceneView, renderer);
}
return renderer?.deck;
}
TileLayerDeckRenderer.ts
// eslint-disable-next-line @typescript-eslint/ban-ts-comment
// @ts-nocheck
import { DeckRenderer } from "@deck.gl/arcgis";
import { render } from "@deck.gl/arcgis/src/commons";
// ArcGIS fov is corner-to-corner
function arcgisFOVToDeckAltitude(fov: number, aspectRatio: number) {
const D = Math.sqrt(1 + aspectRatio ** 2);
const halfFOV = (fov / 2 / 180) * Math.PI;
return D / 2 / Math.tan(halfFOV);
}
export default class TileLayerDeckRenderer extends DeckRenderer {
callMe() {
console.log('callme');
}
render(context) {
const [width, height] = this.view.size;
// 修复缩放绿屏问题。
window.devicePixelRatio = 1;
render.call(this, {
gl: context.gl,
width,
height,
viewState: {
latitude: this.view.center.latitude,
longitude: this.view.center.longitude,
altitude: arcgisFOVToDeckAltitude(this.view.camera.fov, width / height),
// TileLayer作为底图时会漂，issue 及修复的方法 https://github.com/visgl/deck.gl/issues/5271
// zoom: this.view.basemapTerrain.tilingScheme.levelAtScale(this.view.scale),
zoom: this.view.basemapTerrain.tilingScheme.levelAtScale(this.view.scale * 2),
bearing: this.view.camera.heading,
pitch: this.view.camera.tilt
}
});
}
}
AnimatedArcLayer.ts
// eslint-disable-next-line @typescript-eslint/ban-ts-comment
// @ts-nocheck
import { ArcLayer } from "@deck.gl/layers";
const vsDeclaration = `
attribute float instanceFrequency;
varying float vArcLength;
varying float vFrequency;
// 新添加的
varying float vStartColor;
attribute vec3 aPosition;
attribute vec2 aUv;
varying vec2 vUv;
`
const vsMain = `
vArcLength = distance(source, target);
vFrequency = instanceFrequency;
vUv = aUv;
// gl_Position = vec4(aPosition, 1.0);
`
const fsColorFilter = `
float tripDuration = vArcLength / animationSpeed;
float flightInterval = 1.0 / vFrequency;
float r = mod(geometry.uv.x, flightInterval);
// Head of the trip (alpha = 1.0)
float rMax = mod(fract(timestamp / tripDuration), flightInterval);
// Tail of the trip (alpha = 0.0)
float rMin = rMax - tailLength / vArcLength;
// Two consecutive trips can overlap
float alpha = (r > rMax ? 0.0 : smoothstep(rMin, rMax, r)) + smoothstep(rMin + flightInterval, rMax + flightInterval, r);
if (alpha == 0.0) {
discard;
}
color.a *= alpha;
// color.r = 0.1;
// color.g = 0.1;
// color.b = 0.1;
`
const fsDeclaration = `
uniform float tailLength;
uniform float timestamp;
uniform float animationSpeed;
varying float vArcLength;
varying float vFrequency;
varying vec2 vUv;
uniform sampler2D uColorTexture;
uniform vec2 uTexSize;
uniform vec2 uDirection;
uniform float uExposure;
uniform bool uUseLinear;
uniform float uRadius;
float gaussianPdf(in float x, in float sigma) {
return 0.39894 * exp( -0.5 * x * x/( sigma * sigma))/sigma;
}
`
const fsMain = `
// vec2 invSize = 1.0 / uTexSize;
// float fSigma = float(100.0);
// float weightSum = gaussianPdf(0.0, fSigma);
// vec4 diffuseSum = texture2D( uColorTexture, vUv).rgba * weightSum;
// float radius = uRadius;
// for( int i = 1; i < 1; i ++ ) {
// float x = float(i);
// if(x > radius){
// break;
// }
// float w = gaussianPdf(x, fSigma);
// float t = x;
// vec2 uvOffset = uDirection * invSize * t;
// vec4 sample1 = texture2D( uColorTexture, vUv + uvOffset).rgba;
// vec4 sample2 = texture2D( uColorTexture, vUv - uvOffset).rgba;
// diffuseSum += (sample1 + sample2) * w;
// weightSum += 2.0 * w;
// }
// vec4 result = vec4(1.0) - exp(-diffuseSum/weightSum * uExposure);
// gl_FragColor = result;
`
class AnimatedArcLayer extends ArcLayer {
[x: string]: any;
// constructor(props){
// super(props)
// }
getShaders() {
const shaders = super.getShaders();
shaders.inject = {
'vs:#decl': vsDeclaration,
'vs:#main-end': vsMain,
'fs:#decl': fsDeclaration,
'fs:DECKGL_FILTER_COLOR': fsColorFilter,
'fs:#main-end': fsMain,
};
return shaders;
}
initializeState(params) {
super.initializeState(params);
this.getAttributeManager().addInstanced({
instanceFrequency: {
size: 1,
accessor: 'getFrequency',
defaultValue: 1
},
});
}
draw(opts) {
this.state.model.setUniforms({
tailLength: this.props.tailLength,
animationSpeed: this.props.animationSpeed,
timestamp: Date.now() % 86400000
});
super.draw(opts);
// By default, the needsRedraw flag is cleared at each render. We want the layer to continue
// refreshing.
this.setNeedsRedraw();
}
}
AnimatedArcLayer.defaultProps = {
// Frequency of the running light
getFrequency: { type: 'accessor', value: 1 },
// Speed of the running light
animationSpeed: { type: 'number', min: 0, value: 1 },
// Size of the blob
tailLength: { type: 'number', min: 0, value: 1 }
}
AnimatedArcLayer.layerName = 'AnimatedArcLayer';
export default AnimatedArcLayer;
用法 #
useAnimatedArcLayer.tsx
// eslint-disable-next-line @typescript-eslint/ban-ts-comment
// @ts-nocheck
import React, { useEffect } from 'react';
import ReactDOM from 'react-dom';
import { getDeckInstance } from '../utils/DeckInstance';
import type { PropsType } from './Component';
import { useMoveinSource } from './useMove';
import { TextLayer } from '@deck.gl/layers/typed';
import _ from 'lodash';
import { districtPointMap } from '../../../../../client/app/data/districtPoint';
import AnimatedArcLayer from '../utils/AnimatedArcLayer';
export const useAnimatedArcLayer = (props: PropsType) => {
const { custom: { moveData, currentPac } } = props;
// console.log('useAnimatedArcLayer - currentPac', currentPac)
// console.log('useAnimatedArcLayer - moveData', moveData)
const { superview } = props;
const moveInSource = useMoveinSource(props);
// console.log('useAnimatedArcLayer',moveInSource);
const sceneView = superview.view.getRealView();
// console.log('useAnimatedArcLayer - sceneView', sceneView)
useEffect(() => {
const tooltipEle = document.createElement('div')
tooltipEle.setAttribute('id', 'map_tooltip');
document.body.append(tooltipEle);
}, [])
useEffect(() => {
if (sceneView && !_.isEmpty(moveInSource) && currentPac) {
// console.log('useAnimatedArcLayer - sceneView', sceneView)
const source = _.compact(moveInSource);
const originData = districtPointMap[currentPac];
const originPoint = originData?.geometry?.coordinates;
const deckInstance = getDeckInstance(sceneView as __esri.SceneView);
const arcLayer = new AnimatedArcLayer({
// new ArcLayer({
id: "arc-layer",
data: source,
pickable: true,
getWidth: 3,
animationSpeed: 0.003,
tailLength: 10,
autoHighlight: true,
onHover: (line) => {
// console.log("hover", line);
const ele = document.getElementById('map_tooltip');
// console.log('useEffect - ele', ele)
if (line.index === -1) {
// ele.style.display='none'
ele.style.visibility = 'hidden'
} else {
// ele.style.left = `${line.devicePixel[0]}px`
// ele.style.top = `${line.devicePixel[1]}px`
ele.style.visibility = 'visible'
ele.style.left = `${line.pixel[0]}px`
ele.style.top = `${line.pixel[1]}px`
const { object: { attributes: { name, value } } } = line;
ReactDOM.render(
<div>
<span>{name}迁入： </span><span>{value}人</span>
</div>
, ele)
}
// ele?.style.top = line.devicePixel[1] + 'px';
},
getTooltip: ({ object }) => {
console.log("tooltip", object);
return object.attributes.name;
},
getSourcePosition: (d) => [d.geometry.x, d.geometry.y],
// getTargetPosition: (d) => [115.95652812130174, 27.81],
getTargetPosition: originPoint,
// getSourceColor: [30, 30, 0 ],
// getTargetColor: [30, 120, 239, 100 ],
getTargetColor: (d) => [
Math.sqrt(d.attributes.value) >= 255
? 255
: Math.sqrt(d.attributes.value) >= 255,
120,
239,
150,
],
getSourceColor: (d) => [
Math.sqrt(d.attributes.value) >= 255
? 255
: Math.sqrt(d.attributes.value) >= 255,
140,
0,
100,
],
});
// TODO: 添加丢失的文字图层
const textLayer = new TextLayer({
id: 'text-layer',
data: _.compact(source),
pickable: true,
getPosition:(d) => [d.geometry.x, d.geometry.y],
getText: d => {
console.log('d',d);
// return 'xxxx!!@#2133'
return d.attributes.value + ' xx11'
},
getSize: 32,
getAngle: 0,
getTextAnchor: 'middle',
getAlignmentBaseline: 'center'
});
// deckInstance.layers = [arcLayer,textLayer];
deckInstance.layers = [arcLayer];
// window.deckInstance=deckInstance;
}
}, [sceneView, moveInSource?.length])
}
