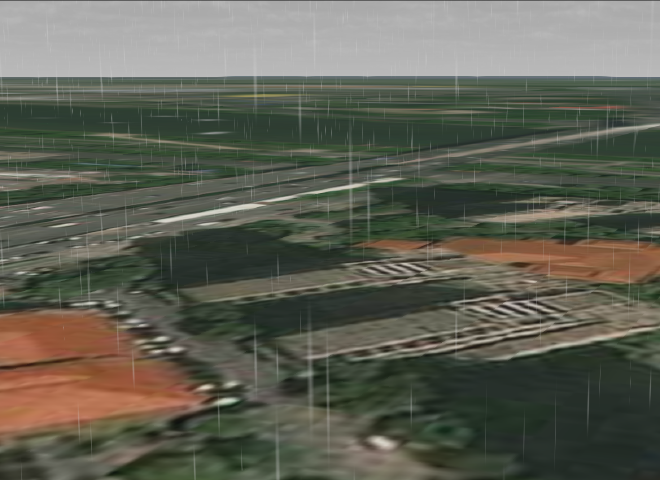

这是在 arcgis 官方 api 更新出天气效果前，和同事用 threejs 实现的一个方案，现在已经是历史的尘埃了，整理笔记，贴在这里。
原理说明 #

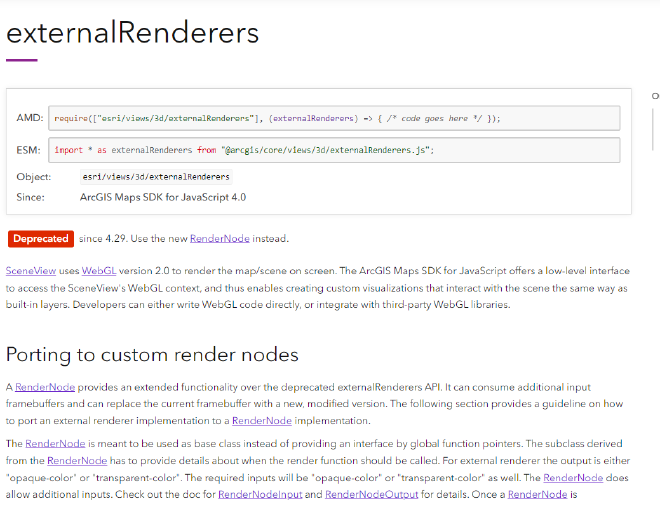

ArcGIS JS API 在 SceneView(3D)场景下，提供了 externalRenders 的 class，暴露了 WebGL context 用于用户扩展实现其他效果。（2024-10 看新的文档，externalRenders 已经弃用，用新的RenderNode来实现。看了一眼，大差不差吧。
无论哪种地图引擎，结合ThreeJS，最主要的一步都是两个坐标系之间的同步。
positionTransform #
import requireArcgis from '../../../../../../utils/requireArcgis';
/**
* 经纬度转世界坐标
* @param {number} longitude 经度
* @param {number} latitude 纬度
* @param {number} height 高程
* @returns {Array} 世界坐标系
*/
export function positionTransform(view:__esri.SceneView, longitude: number, latitude: number, height: number): Promise<Array<number>> {
return requireArcgis([
'esri/views/3d/externalRenderers',
'esri/geometry/support/webMercatorUtils',
'esri/geometry/SpatialReference',
]).then(([externalRenderers, webMercatorUtils, SpatialReference]) => {
const transformation = new Array(16);
const pointXY = webMercatorUtils.lngLatToXY(longitude, latitude);
externalRenderers.renderCoordinateTransformAt(
view,
[pointXY[0], pointXY[1], height],
SpatialReference.WebMercator,
transformation,
);
return transformation;
});
}
构建threejs场景 #
import _ from 'lodash';
import {
WebGLRenderer,
Scene,
PerspectiveCamera,
Vector3,
AxesHelper,
Group,
DirectionalLight,
AmbientLight,
AnimationMixer,
Clock,
Mesh,
ShaderMaterial,
AnimationAction,
} from 'three';
import requireArcgis from '../../../../../../utils/requireArcgis';
export declare type OptionsType = {
view: __esri.SceneView;
}
class ThreeRender {
renderer: WebGLRenderer;
scene: Scene;
camera: PerspectiveCamera;
view: __esri.SceneView;
snow: Group;
rain: Group;
dir_light: DirectionalLight;
amb_light: AmbientLight;
isSnow = true;
isWeather = false;
isRotate: boolean;
mixer: AnimationMixer;
clock: Clock;
animationActions: AnimationAction[];
nebula: any;
circle: Group;
constructor(options: OptionsType) {
this.view = options.view;
this.clock = new Clock();
}
setup = (context: __esri.RenderContext | undefined): void => {
this.renderer = new WebGLRenderer({
context: context?.gl,
premultipliedAlpha: false,
});
this.renderer.setPixelRatio(window.devicePixelRatio);
this.renderer.setViewport(0, 0, this.view?.width, this.view?.height);
this.renderer.autoClearDepth = false;
this.renderer.autoClearStencil = false;
this.renderer.autoClearColor = false;
this.scene = new Scene();
this.camera = new PerspectiveCamera();
const axis = new AxesHelper(10000000);
this.scene.add(axis);
this.dir_light = new DirectionalLight(0xffffff, 2.5);
this.amb_light = new AmbientLight(0xffffff, 0.5);
this.scene.add(this.dir_light);
this.scene.add(this.amb_light);
this.amb_light.position.set(-1942417.533565925, 5114161.777474515, 3279564.9596681832);
this.dir_light.position.set(-1942417.533565925, 5114161.777474515, 3279564.9596681832);
context?.resetWebGLState();
this.scene.add(this.camera);
this.camera.add(this.rain);
this.circle = new Group();
this.animationActions = [];
this.scene.add(this.circle);
};
render = (context: __esri.RenderContext | undefined): void => {
if (!context) {
return ;
}
const ArcCamera = context.camera;
this.camera?.position.set(
ArcCamera.eye[0],
ArcCamera.eye[1],
ArcCamera.eye[2],
);
this.camera?.up.set(
ArcCamera.up[0],
ArcCamera.up[1],
ArcCamera.up[2],
);
this.camera?.lookAt(
new Vector3(
ArcCamera.center[0],
ArcCamera.center[1],
ArcCamera.center[2]),
);
if (this.circle.children.length > 0) {
_.each(this.circle.children, c => {
((c as Mesh).material as ShaderMaterial).uniforms.time.value +=0.01;
});
}
if (this.mixer) {
const data = this.clock.getDelta();
this.mixer.update(data);
}
this.camera?.projectionMatrix.fromArray(ArcCamera.projectionMatrix);
if (this.nebula) {
this.nebula.update();
}
this.renderer?.state.reset();
this.renderer?.render(this.scene, this.camera);
requireArcgis('esri/views/3d/externalRenderers').then(externalRenderers => {
externalRenderers.requestRender(this.view);
});
context.resetWebGLState();
};
}
export default ThreeRender;
layeRenderer.ts
sceneView.render = new ThreeRender({'view':sceneView});
requireArcgis('esri/views/3d/externalRenderers').then(externalRenderers=> {
externalRenderers.add(sceneView, sceneView.render);
console.log('sceneView',sceneView);
// do something
});
loader.ts
export function Textureloader(url: string): Texture {
const textureloader = new TextureLoader();
return textureloader.load(url);
}

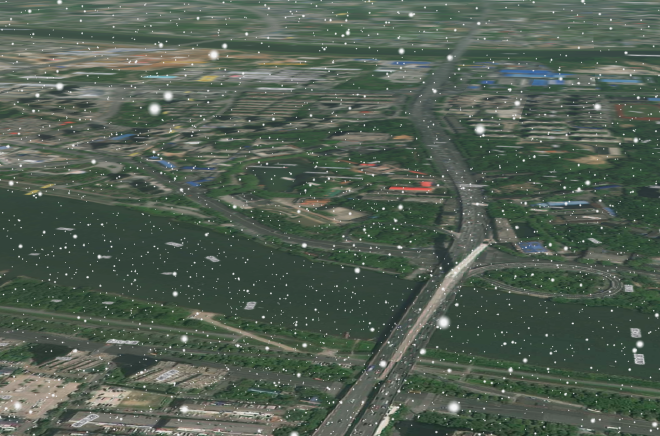

export function createSnow(): Group {
const snow1 = Textureloader('../assets/snow1.png');
const snow2 = Textureloader('../assets/snow2.png');
const snow3 = Textureloader('../assets/snow3.png');
const snow4 = Textureloader('../assets/snow4.png');
const snow5 = Textureloader('../assets/snow5.png');
const group = new Group();
const geometry = new BufferGeometry();
const vertices = [];
for (let i = 0; i < 100000; i++) {
const x = Math.random() * 5000 - 2500;
const y = Math.random() * 5000 - 2500;
const z = Math.random() * 5000 - 2500;
vertices.push(x, y, z);
}
geometry.setAttribute('position', new Float32BufferAttribute(vertices, 3)); //设置geometry顶点
geometry.computeBoundingBox();
geometry.center();
const materials = [];
const params = [
[[1.0, 0.2, 0.5], snow1, 20 * 2],
[[0.9, 0.1, 0.5], snow2, 15 * 2],
[[0.95, 0.05, 0.5], snow3, 10 * 2],
[[0.85, 0, 0.5], snow4, 30 * 2],
[[0.8, 0, 0.5], snow5, 25 * 2],
];
for (let i = 0; i < params.length; i++) {
const [color, texture, size] = params[i];
materials[i] = new PointsMaterial({
size: size as number,
map: texture as Texture,
blending: AdditiveBlending,
depthTest: false,
transparent: true,
opacity: 1,
});
materials[i].color.setHSL(
(color as Array<number>)[0],
(color as Array<number>)[1],
(color as Array<number>)[2],
);
const particles = new Points(geometry, materials[i]);
particles.rotation.x = Math.random() * .6;
particles.rotation.y = Math.random() * .6;
particles.rotation.z = Math.random() * .6;
group.add(particles);
}
return group;
}
